Item No.: CTYS100
Type: Dial Indicator
Material: Stainless Steel
Specification: Range:0-10mm
Price: US $6.8-35/ Set
Other: Rod Diameter: 4.5mm
INQUIRE NOW

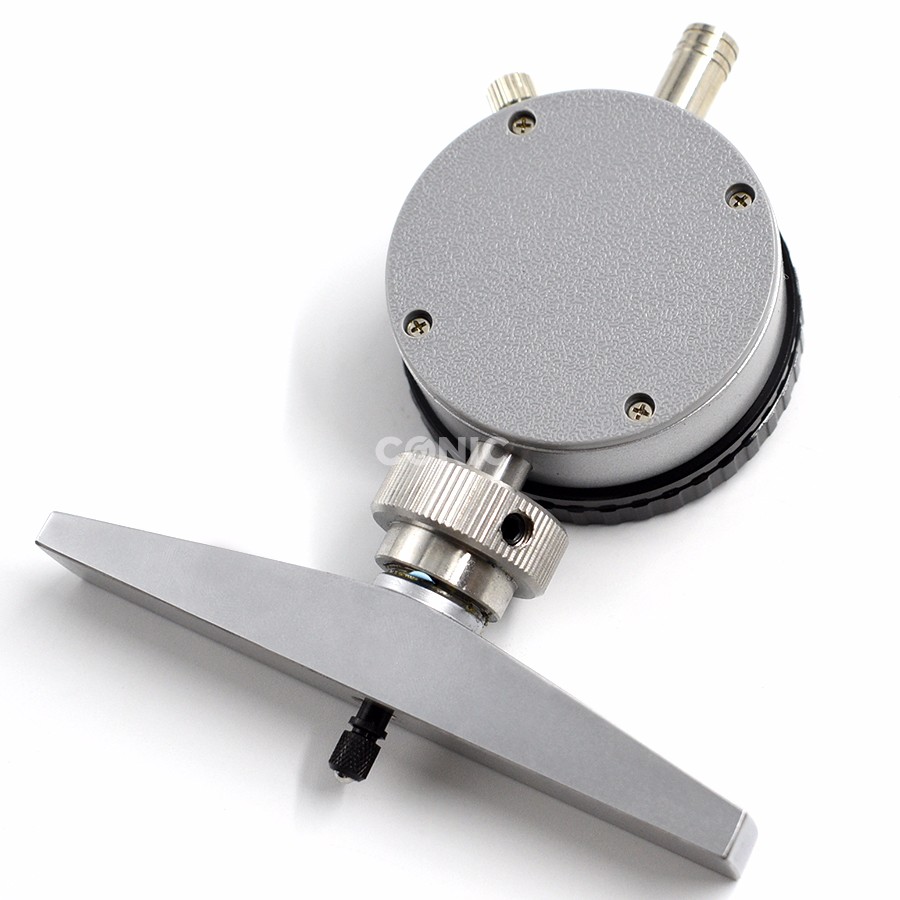

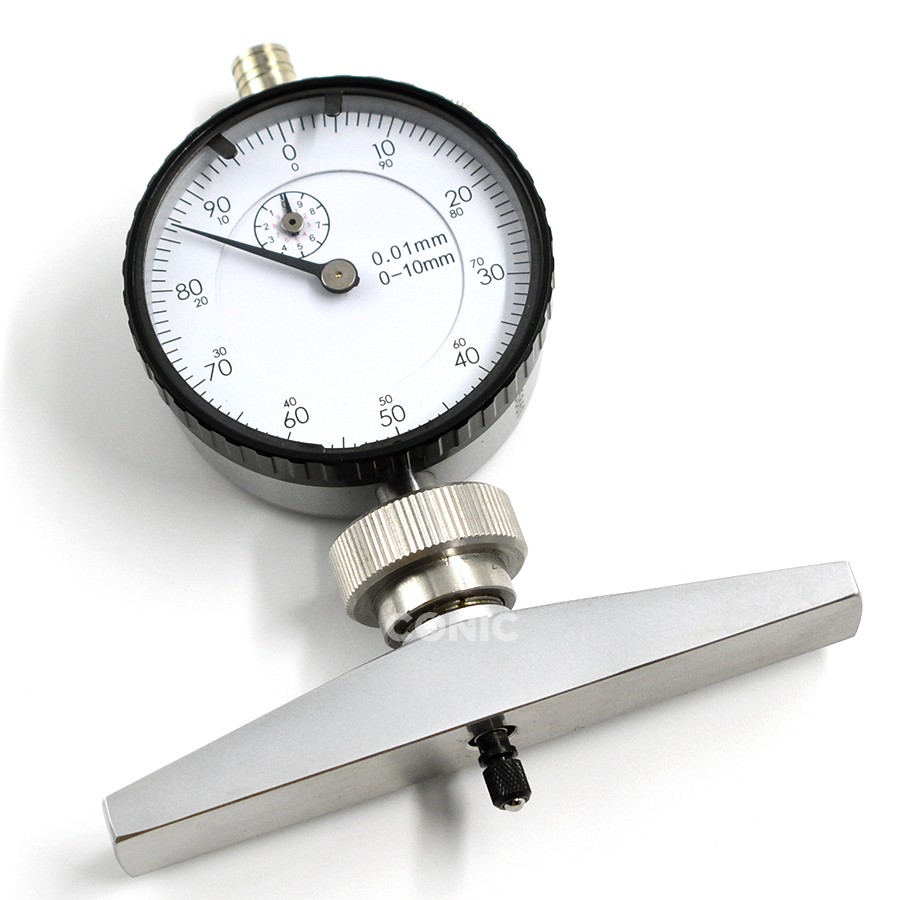

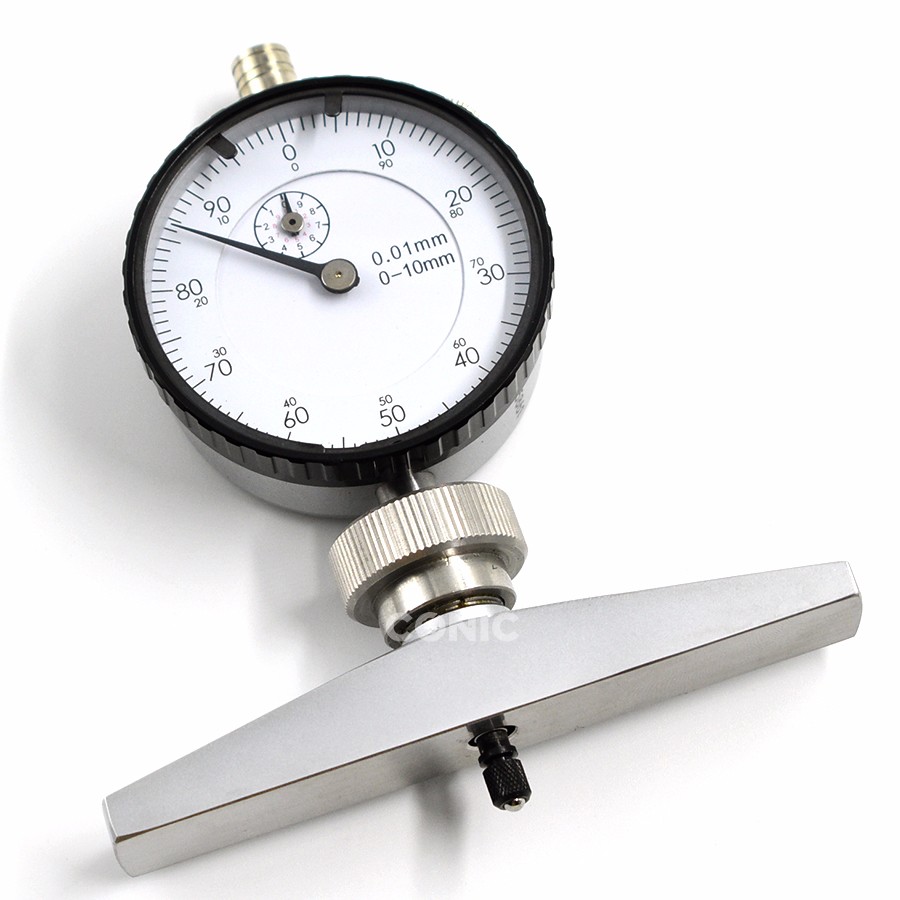

dial depth gauge, 0-10mm depth dial indicator, Dial Depth Gauge DIN878

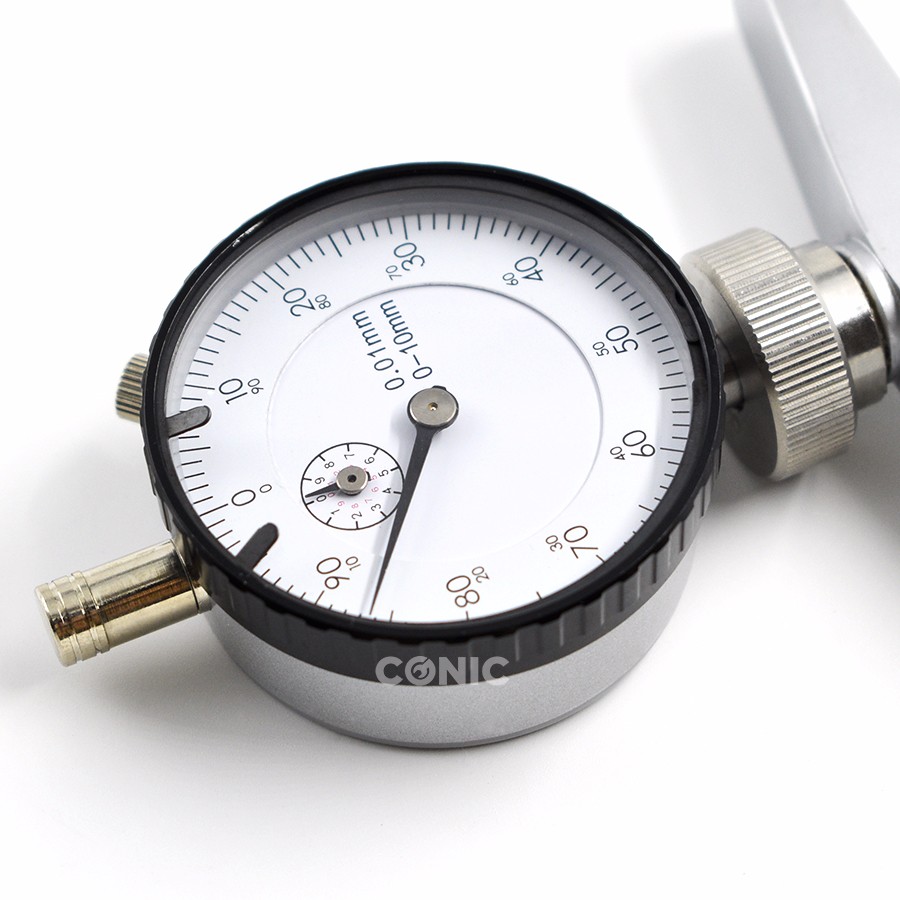

- with reversed scale

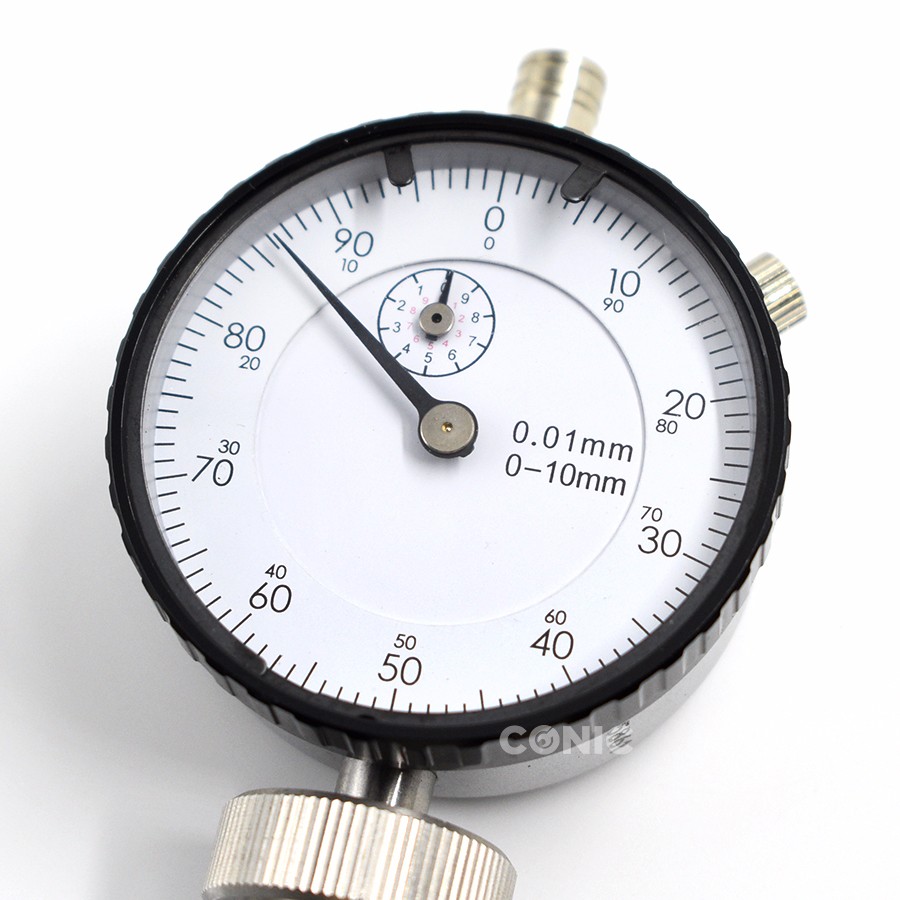

- range 10 mm, reading 0.01 mm
- accuracy to manufacture standard 17 μm - metal casing, with tolerance marks
depth base: 100x16mm

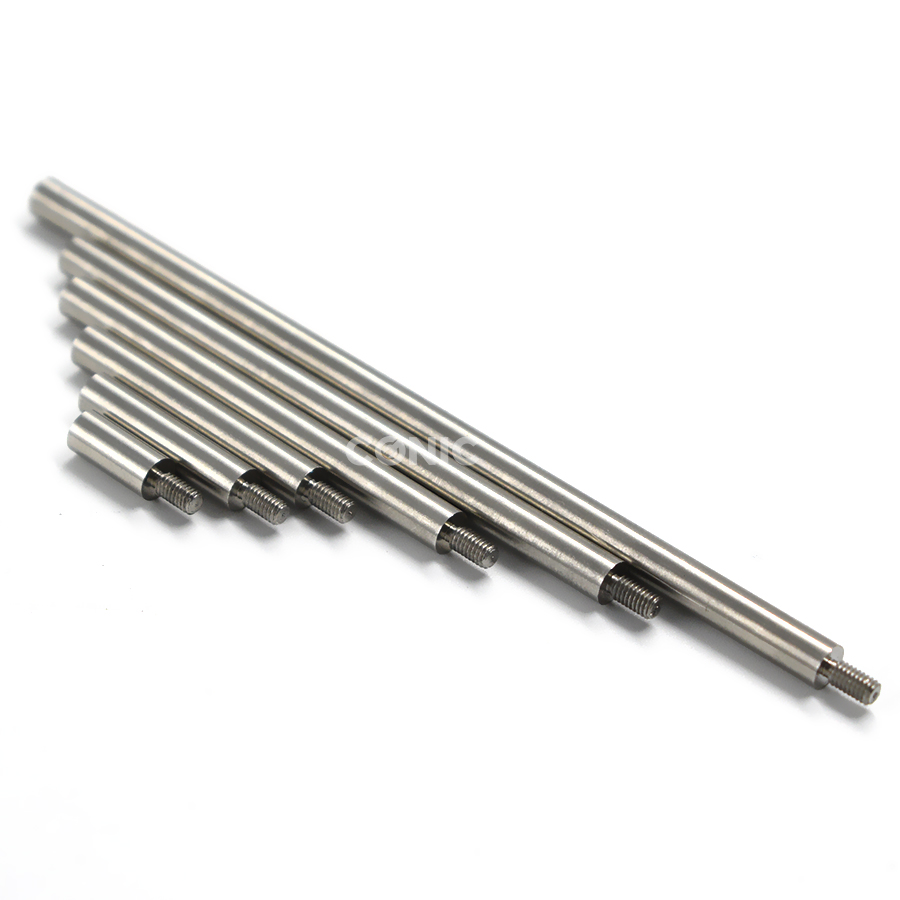

extensions: 10 , 20, 30, 50, 70 and 100 mm

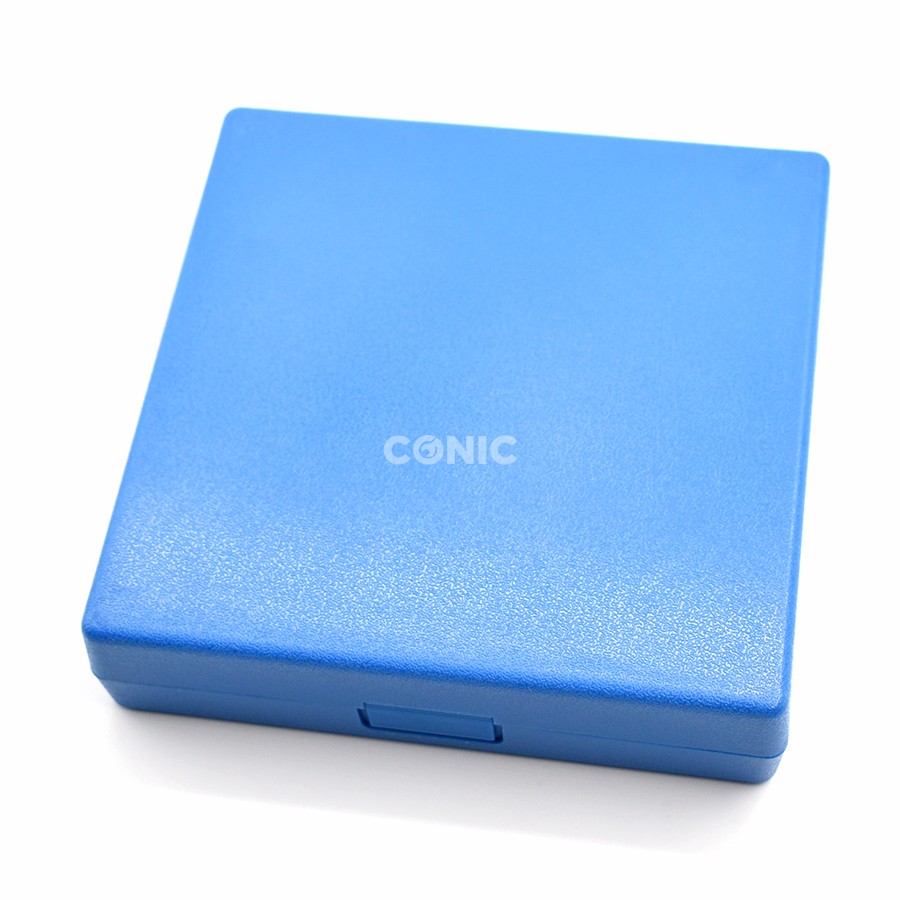

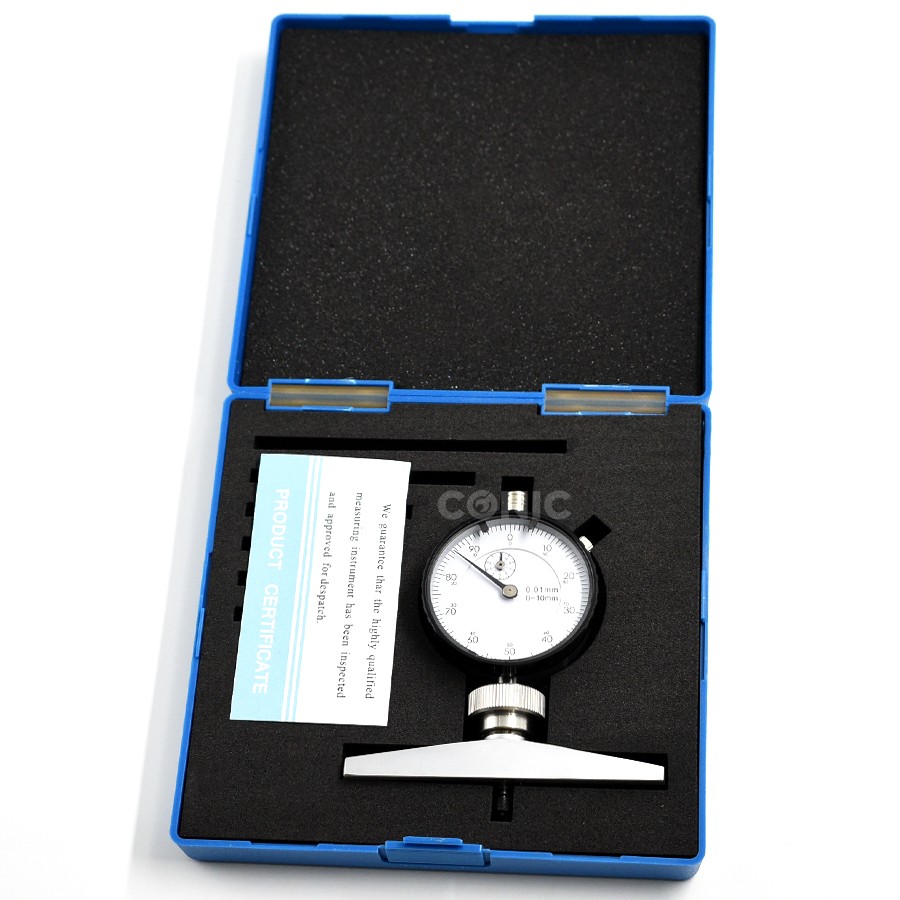

Packing: plastic case for each set
